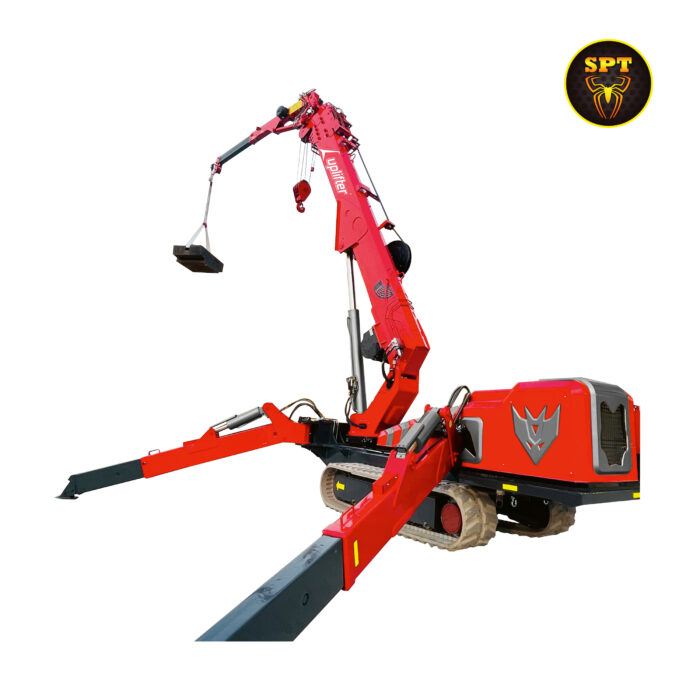

Uplifter SPT1009 Mini Crane

Send enquiry
Description

Description

The Uplifter SPT1009 Mini Crane is the most powerful mini crane in the Uplifter SPT range. With a lifting capacity of an incredible 10,000 kg, it is the undisputed leader among Spider Cranes.

  • Manufacturer: SPT
  • Lifting capacity max. 10,000 kg
  • Working radius max. 19.0 m
  • Hook height approx. max. 20.2 m (25.0 m incl. jib)
  • Climbing capacity: max. 23° or 42
  • Cranes below ground: 20.0 m/6-fold, 30.0 m/4-fold, 62.0 m/2-fold, 125.0 m single shear

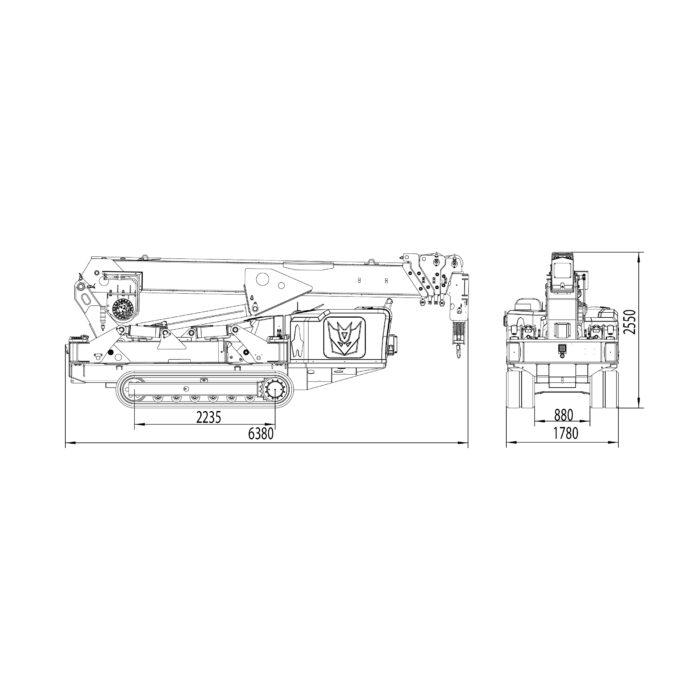

  • L/W/H 6,380 mm x 1,780 mm x 2,550 mm
  • Combination drive diesel/electric 380 V
  • Diesel engine 4TNV88(YANMAR)29.1 kW 2400 rpm.
  • Own weight approx. 11,800 kg

Standard equipment

Mounting point, load hook, engine heating, hybrid drive, radio remote control with integrated digital load display, hour meter,1/2/4-way hook block, black rubber tracks, 360° slewing range, over-rotation protection, hydraulic safety valves, levelling indicator, tilt alarm, emergency stop switch, load moment limiter, operating warning light, locking support feet.

tip The Uplifter SPT1009 mini crane is the strongest in its class with 10,000 kg lifting capacity. In direct comparison with other brands, the Uplifter SPT1009 lifts around 2 tonnes more!



In addition, the Uplifter SPT1009 mini crane has a maximum working height of 20.2 m, which can even be increased to 25.0 m with a jib.

The Uplifter SPT1009 mini crane is available particularly quickly: short delivery times – Europe-wide from a single source! Extensive features are already built into the standard equipment: Highest performance, no additional costs. Benefit from unbeatable prices with full equipment of the highest quality.

The practical hybrid drive enables even more flexible working in industry and trade. It is driven by a powerful diesel engine or by a power cable / 380 V 4-phase, making it virtually silent and emission-free. Practical accessories such as hydraulic or manual jib, white tracks, jib pads, toolbox, etc. can be optionally purchased or retrofitted at any time.

The mini crawler cranes from the Uplifter SPT series have only high-quality components from Europe installed, which distinguishes the high quality and durability of these machines. With Uplifter you have your competent service partner for mini cranes, mobile cranes, vacuum suction cups and glassworkers directly on site! You are also welcome to bring brands such as VALLA, MAEDA, UNIC, etc. to one of our Germany-wide locations for UVV inspection, repair and maintenance. We have the competence and decades of know-how.

24 h delivery time – worldwide delivery. Do you have any questions about our brand new crane range or any other equipment for rent, new or used? Your Uplifter expert advisors for mini cranes, glassworkers, vacuum suction cups and transport equipment will be happy to help you. Please contact us.
