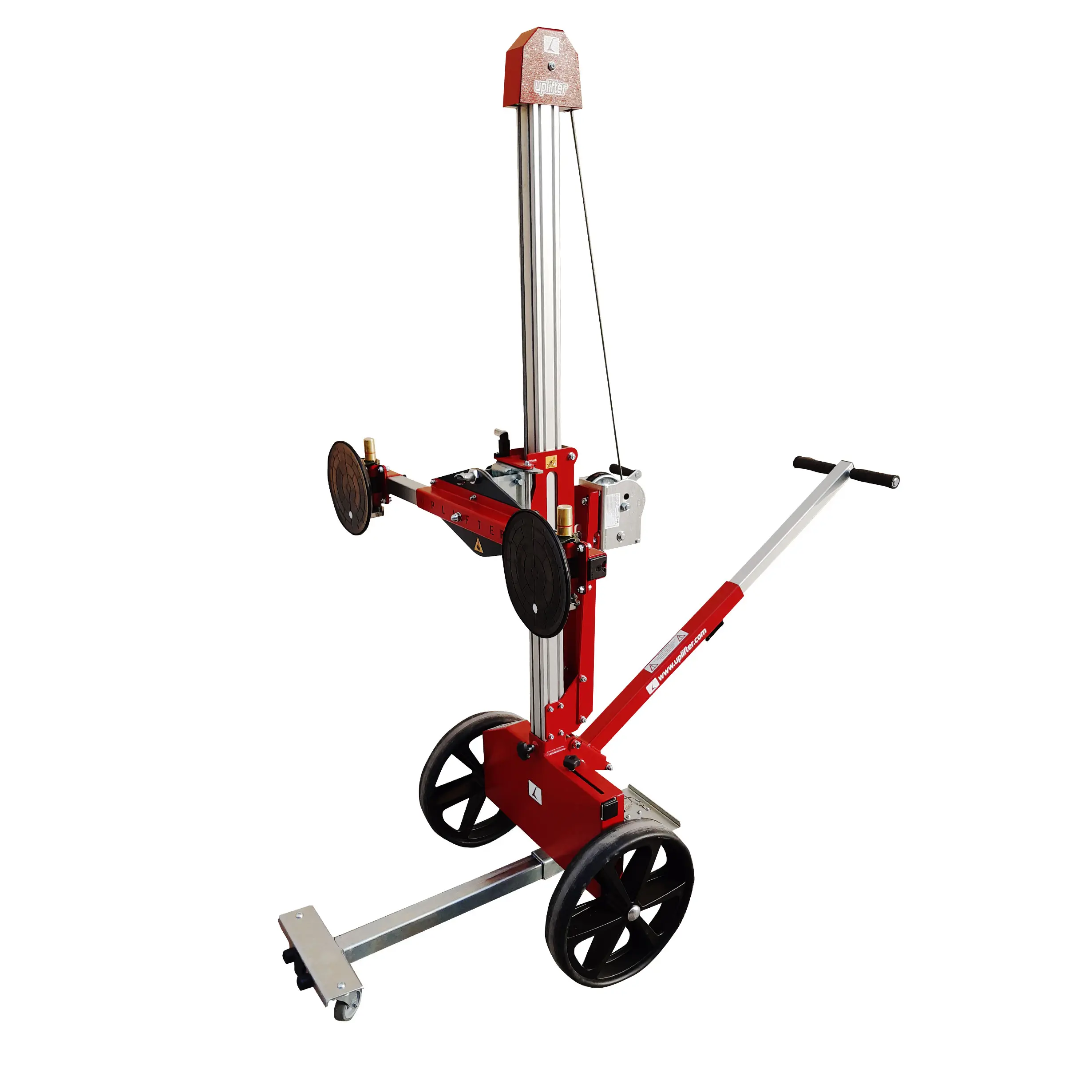

Glass Lifter UPT150

Description

The Glass Lifter UPT150 transport helper is a maneuverable 1-man glass installer for doors, windows, glass, metal and wood on the construction site.

• Max. load 150 kg
• Silicone-free suction plates (no marks)
• Manual cable winch for lifting and lowering
• Uncomplicated and quick assembly/disassembly
• Total width: 713 mm without vacuum system
• Total height 1,972 mm
• Solid rubber tyres Ø 400 mm
• Non-slip handle
• Own weight approx. 69 kg
• Manual side shift (+/- 55 mm) optional

With this versatile assembly machine, transporting building elements is child’s play and as a window transporter it is not only popular with glaziers. This one-man operated glazing machine provides a reliable, efficient and safe method of handling smooth, non-porous material of any kind, such as glass, metal, stone, plastic, slate, boards or laminate.

This lift is ideal for transporting through doorways and for glazing in small, confined areas.

One person can lift and lower building elements up to 80 kg and two persons even up to 150 kg.

The suction unit with two integrated suction plates (ø 232 mm) can be rotated 360°.

The non-slip handles of this glass handler are adjustable in height and length.

With the solid rubber tyres (ø 400 mm), even rough terrain can be safely negotiated.

The UPT150 glass transport trolley can be dismantled quickly and easily to fit into any car boot. Easy transport and assembly of the lifting device by one person guaranteed! The glass lifting device conserves forces during transport and assembly of medium loads.
