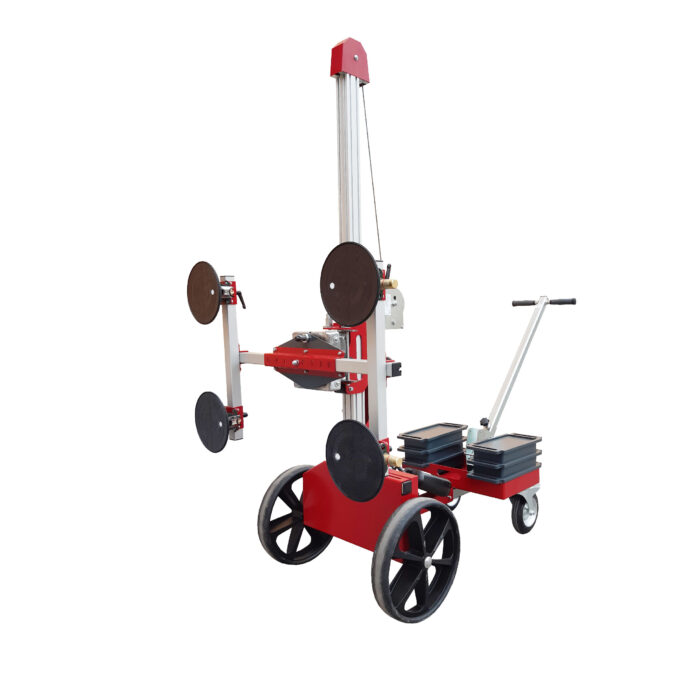

Glass Lifter UPT250 Transport and Assembly Trolley

Apraksts

The Glass Lifter UPT250 glass assembly tool is a manoeuvrable glass handling tool for doors, windows, glass, metal and wood on the construction site.

• Load capacity max. 250 kg
• Silicone-free suction plates (no marks)
• Optional electric winch for lifting and lowering
• Uncomplicated and quick assembly/disassembly

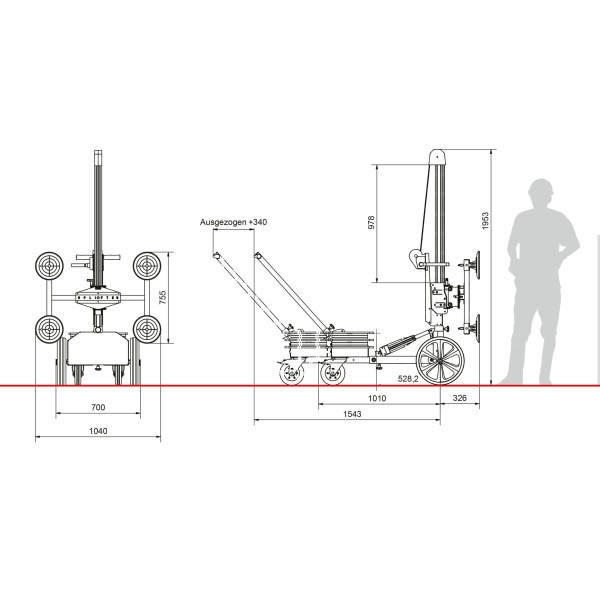

• Total width: 713 mm without vacuum system
• Turns elements up to 2,500 mm long
• Mast can be swivelled by 90
• Mast can be tilted by + 7° and – 30
• Non-slip handle
• Manual side shift (+/- 55 mm) optional
• Own weight approx. 240 kg

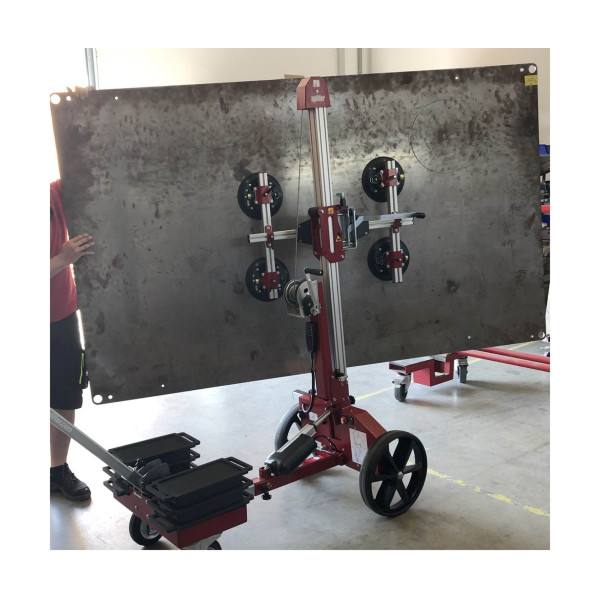

The UPT250 glass assembly tool is a manoeuvrable glass handling tool for doors, windows, glass, metal and wood on the construction site.

With the versatile assembly tool, transporting construction elements is child’s play.

The UPT250 can lift and lower loads up to 250 kg and is not only popular with glaziers as a window transporter. This one-man operated glazing machine provides a reliable, efficient and safe method of handling smooth, non-porous material of any kind, including glass, metal, stone, plastic, slate, boards or laminate.

This lift is ideal for transporting through doorways and for glazing in small, confined areas.

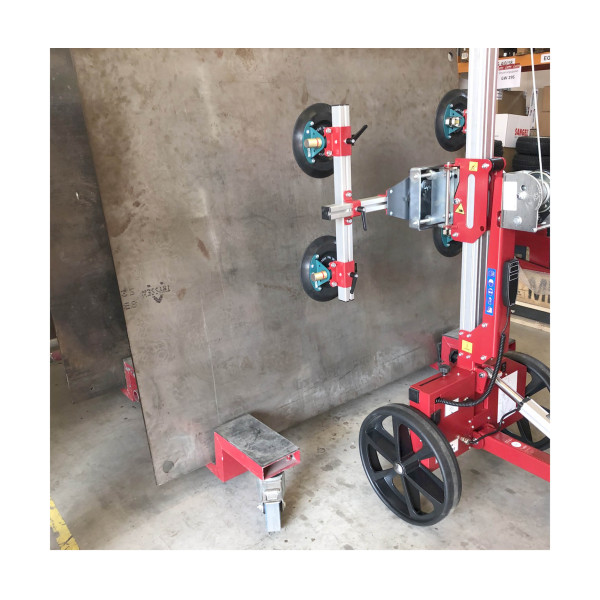

The mast can be swivelled by 90° and the suction unit with four integrated suction plates (ø 232 mm) can be rotated by 360°.

The non-slip handles of the lift are adjustable in height and length and the solid rubber tyres (ø 400 mm) make it easy to negotiate rough terrain.

The UPT250 glass mounting device is easy to dismantle and can be quickly transported from one floor to another. Easy transport and assembly by one person guaranteed! The glass lifting device with one-man operation conserves forces during transport and assembly of medium loads.

The UPT250 vacuum grip lifter is a very versatile panel and glass assembly device from the Uplifter production facility.
